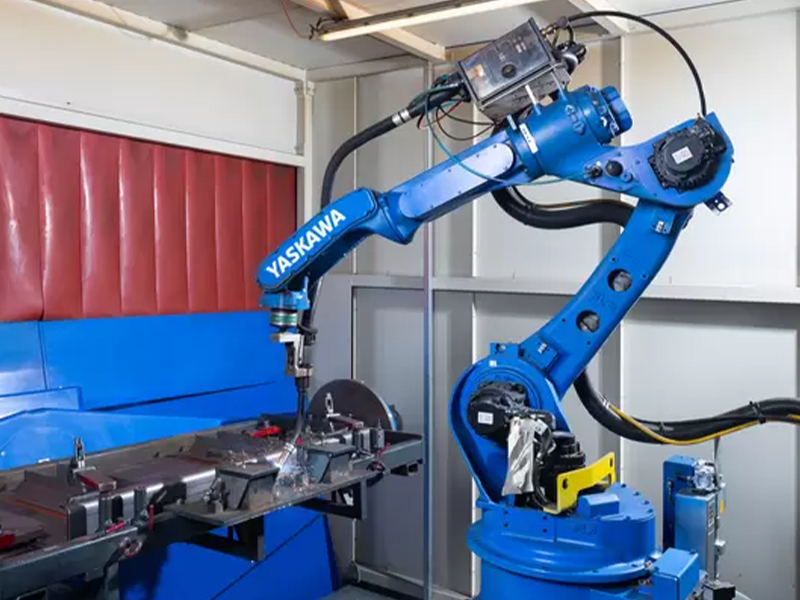

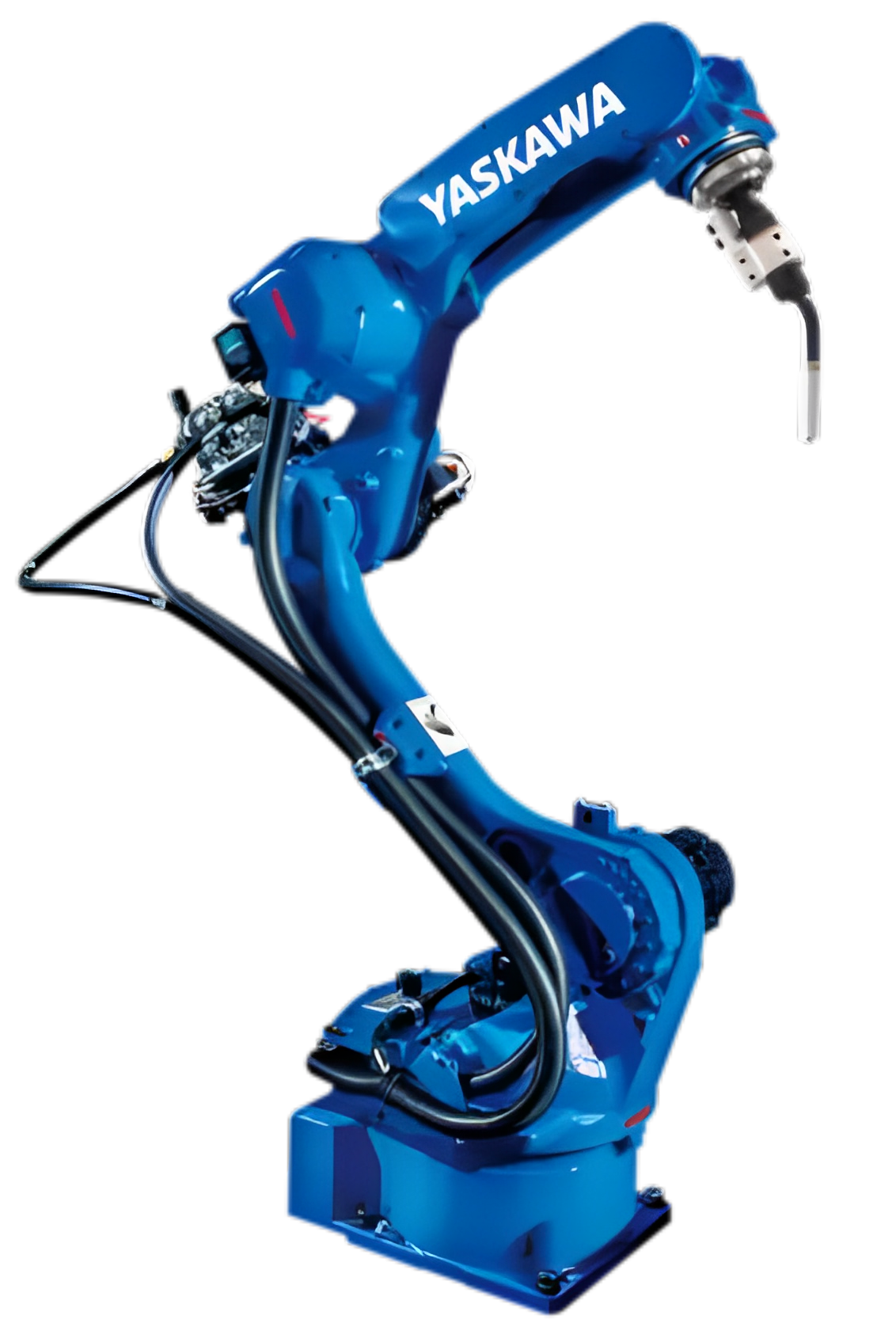

YASKAWA AR 1440 Series Robots with a high payload of up to 12 kg and a wide working range of 1,440 mm this robot is well suited for laser welding equipment. The bended arm design and hollow arm structure allows integrated torch cabling and avoids collisions.
Our Robot welding system can be also connected with ABB, FANUC, KUKA and other Robots perfectly.
| No. | Main Parts | Brand&Model | Note | Photo |
| 1 | Robot System |  |
||
|
Robot arm |
Yaskawa AR1440 Yaskawa AR2010 |
12KG Load |
||
|
Control cabinet |
Yaskawa | |||
|
Welding communication |
Yaskawa | |||
|
Programmer |
Yaskawa | |||
|
Base support |
TOPTEK | |||
| 2 | Laser welding system |  |
||
|
Laser source |
MAX |
|||
|
Industrial Chiller |
Hanli | |||
|

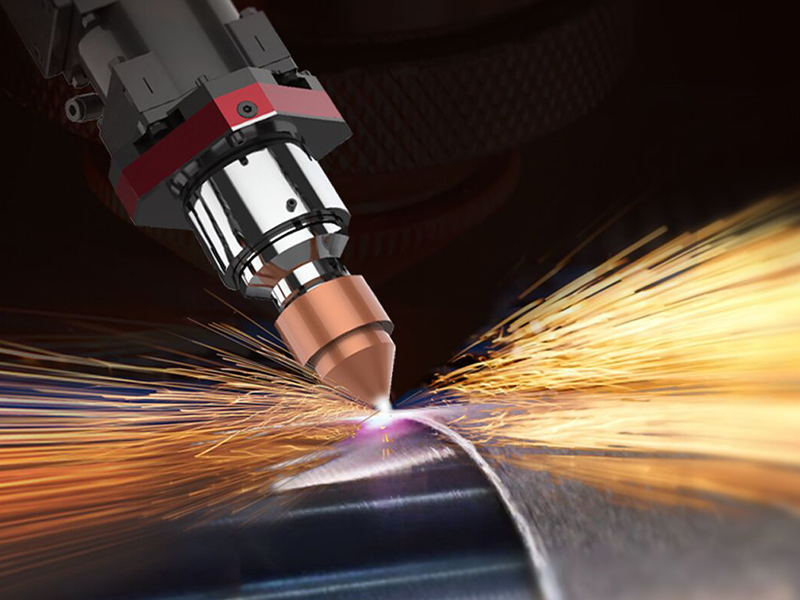

Wobble welding head |
TOPTEK | |||
|
3D Auto-seam tracking system |
TOPTEK | |||
|
Control cabinet |
TOPTEK | |||
|
Auto-wire-feeder |
TOPTEK | |||

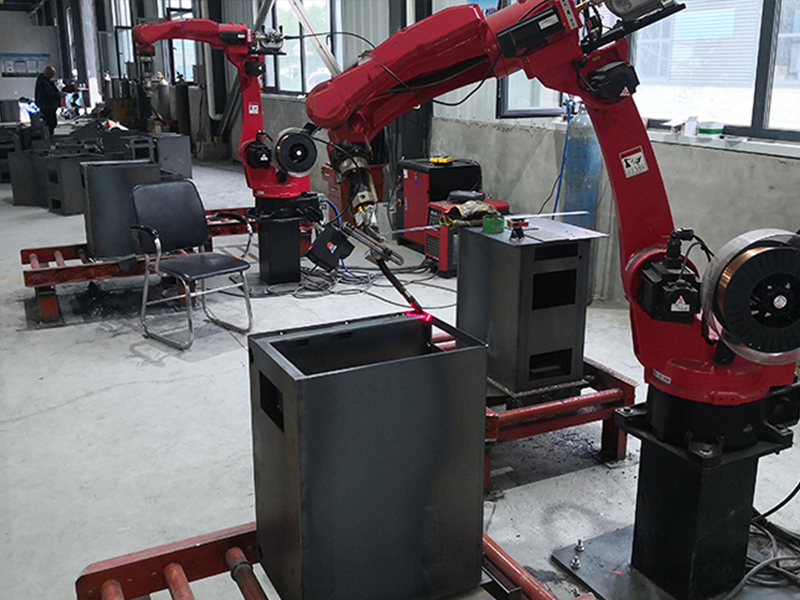

Different Robots available (YASKAWA, ABB, KUKA, FANUC or TOPTEK robots). We design a work station including laser welding system, 3D-auto-seam-tracking sytem, positioning system and communication protocol .
If you already have a robot arm, we can provide professional laser welding system to connect with your Robot.

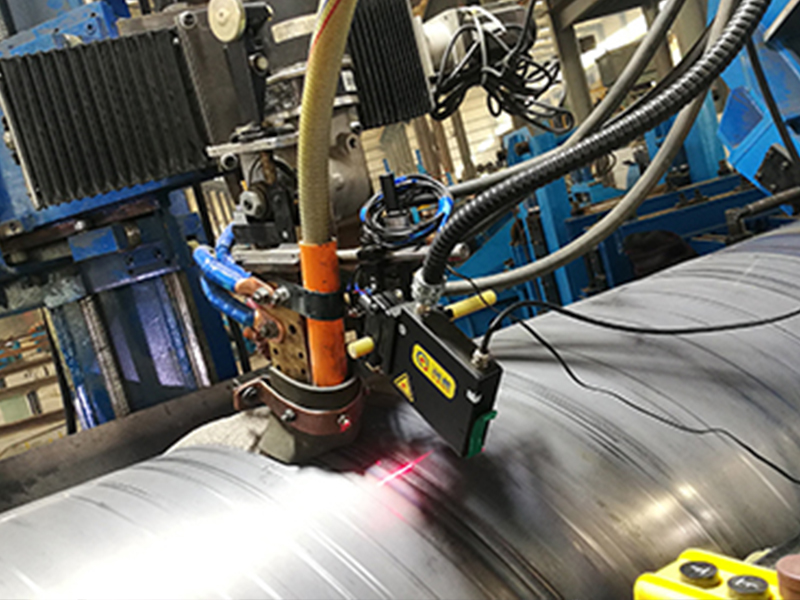

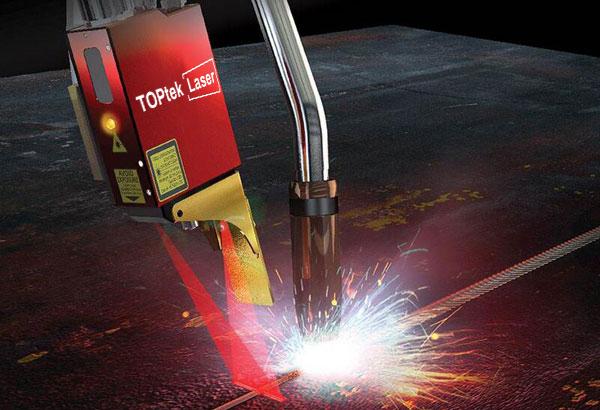

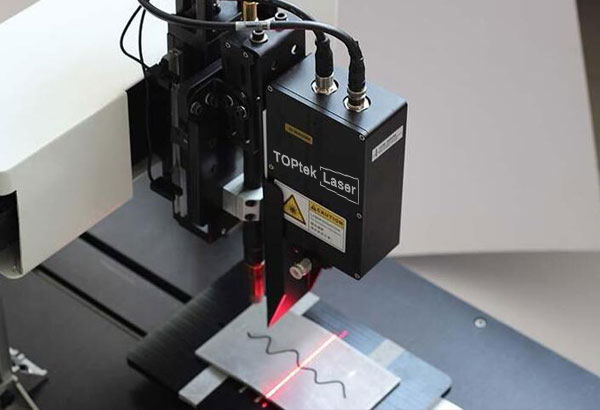

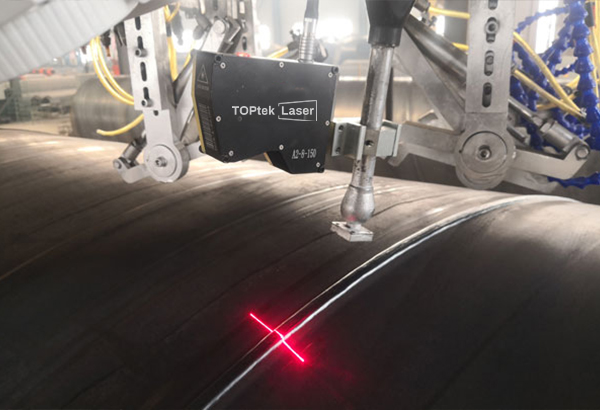

The 3D Auto-seam-tracking system is the heart of the laser welding system,which is installed on the welding head. This system will auto scan the surface and position of the workpiece and then auto-adjust the programme. This is our own patent and already widely used in many industries, including India TATA group, Ford automobile factory, China National Subway projects etc.

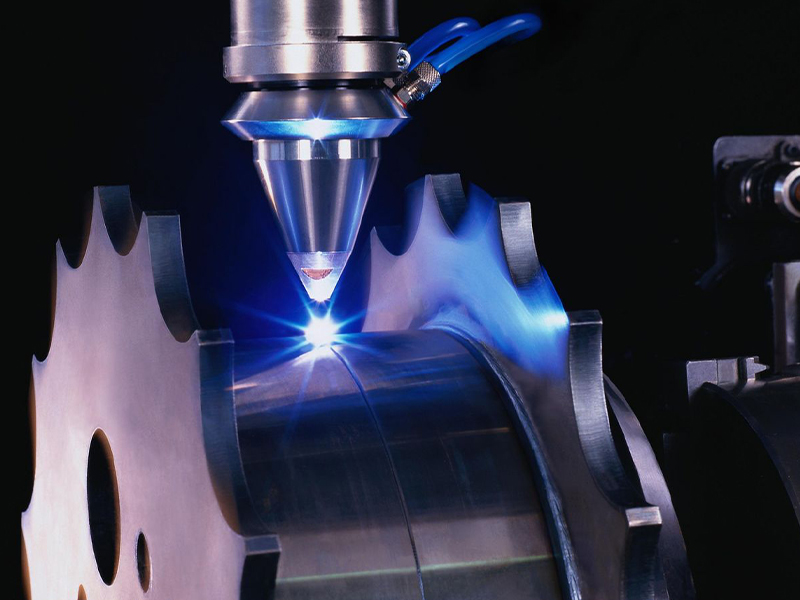

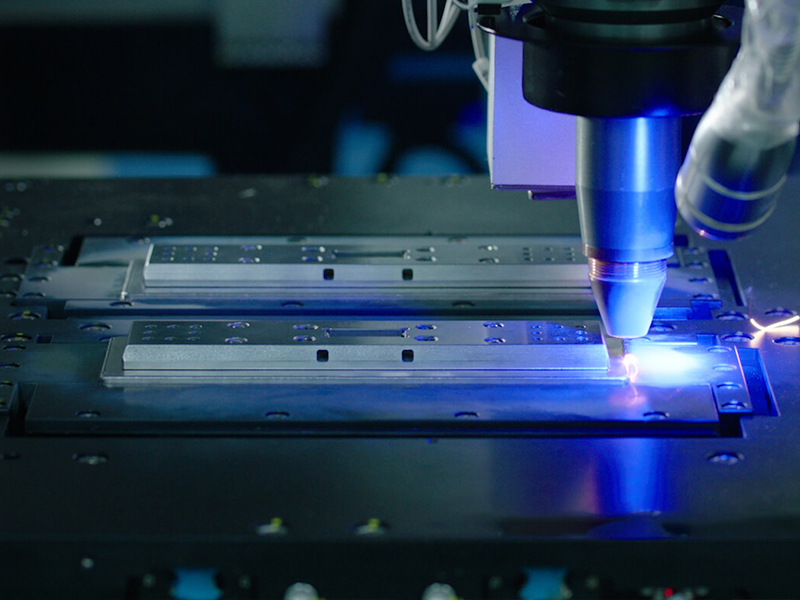

From automotive to aerospace – laser welding technlogy is widely used in many applications. Specially the bulk standard production and Precision production.
